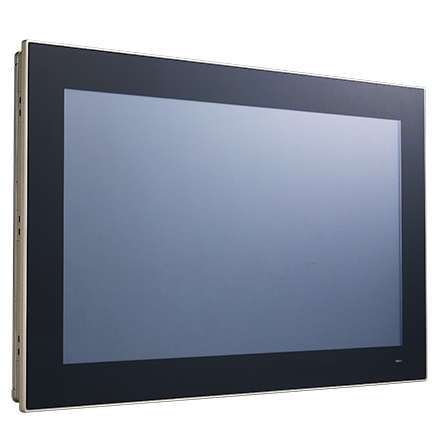

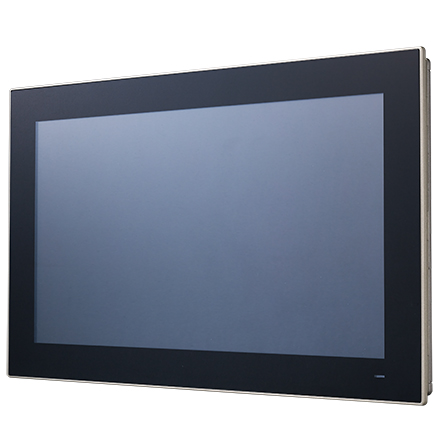

研華PPC-3180SW 18.5寸無風扇寬屏工業電腦
-
18.5" Fanless Widescreen Panel PC with Intel® Pentium® N4200 Quad-Core Processor
18.5" true-flat TFT LCD with projected capacitive touch control
Fanless design with low power consumption
Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
Configurable RS-232/422/485 ports via BIOS
Automatic data flow control over RS-485
Wide range DC support (12 ~ 24 VDC)
Supports dual displays
IP65-rated front panel
可選配置：
1、PPC-3180SW-PN4A/N4200/4G/500G/適配器
2、PPC-3180SW-PN4AU/N4200/128G固態/適配器
備注：也可以根據客戶需求定制產品。
產品規格
PPC-3180SW |
||
System |
CPU |
Intel Pentium? N4200 quad Core |
頻率 |
1.1GHz, turbo boot to 2.5GHz. |
|
2級緩存 |
3MB |
|
內存 |
1 x SODIMM, DDR3L 1600/1866, max. 8 GB |
|
硬盤 |
1 x 2.5" SATA （可選；需要一個支架模塊） |
|
網絡 |
2 x 10/100/1000 Mbps Ethernet (Intel I211-AT) |
|
I/O |

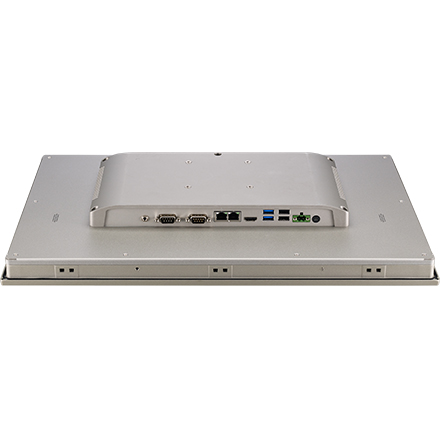

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485 2 x USB 3.0, 2 x USB 2.0 1 x Line-out 1 x HDMI |
|
擴展 |
1 x Mini PCIe |
|
看門狗定時器 |
255個定時器級別，由軟件設置 |
|
Speaker |
2 x 1W |
|
物理特征 |

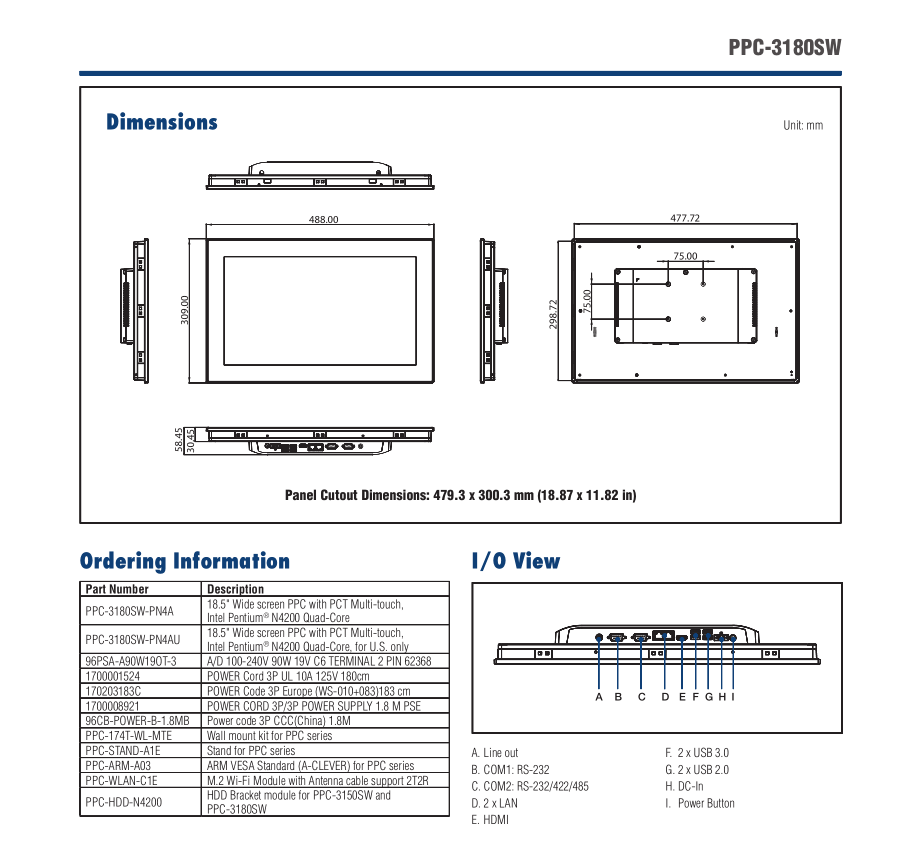

尺寸 |
488 x 309 x 58.45 mm (19.21 x 12.16 x 2.3 in) |
重量 |
5.4 kg (11.90 lb) |
|
OS支持 |
OS支持 |
Microsoft? Windows 10(64-bit), Windows 10 IOT LTSC, Linux, Android 8.1 |
功耗 |
輸入電壓 |
12 ~ 24 VDC |
功耗 |
35W |
|
LCD |
顯示 |
18.5" TFT LCD (LED backlight) |
分辨率 |
1366 x 768 |
|
觀察角 |
85 (Left), 85 (Right), 80 (Up), 80 (Down) |
|
Luminance |
450 |
|
對比度 |
1000 |
|
觸摸屏 |
Touch Type |
Multi-touch projected capacitive |
光射透 |
90% ± 2% |
|
Controller |
USB接口 |
|
運行環境 |
操作溫度 |
0 ~ 50 °C (32 ~ 122 °F) with SSD 0 ~ 40 °C (32 ~ 104 °F) with HDD |
貯存溫度 |
-20 ~ 60 °C (-4 ~ 140 °F) |
|
相對濕度 |
10 ~ 95% @ 40 °C（非凝結） |
|
抗振 |
Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 |
|
EMC |
CE, FCC Class B, BSMI, EN 60601-1-2 |
|
認證 |
CE, UL, CCC, BSMI |
|
前面板保護 |
符合IP 65 |
|
