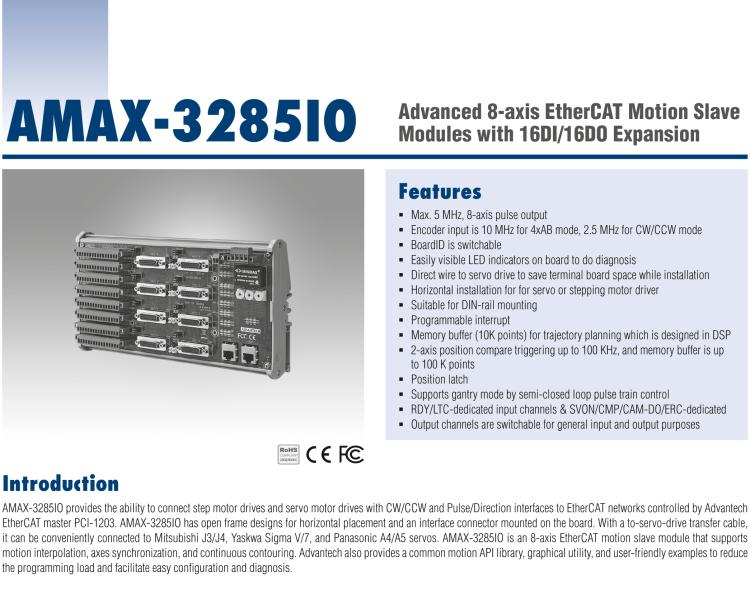

研華AMAX-3285IO 8-axis EtherCAT Motion SubDevice with 16DI/16DO Expansion

• Max. 5 MHz, 8-axis pulse output
• Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
• BoardID is switchable
• Easily visible LED indicators on board to do diagnosis
• Direct wire to servo drive to save terminal board space while installation
• Horizontal installation for for servo or stepping motor driver
• Suitable for DIN-rail mounting
• Programmable interrupt
• Memory buffer (10K points) for trajectory planning which is designed in DSP
• 2-axis position compare triggering up to 100 KHz, and memory buffer is up to 100 K points
• Position latch
• Supports gantry mode by semi-closed loop pulse train control
• RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated
• Output channels are switchable for general input and output purposes

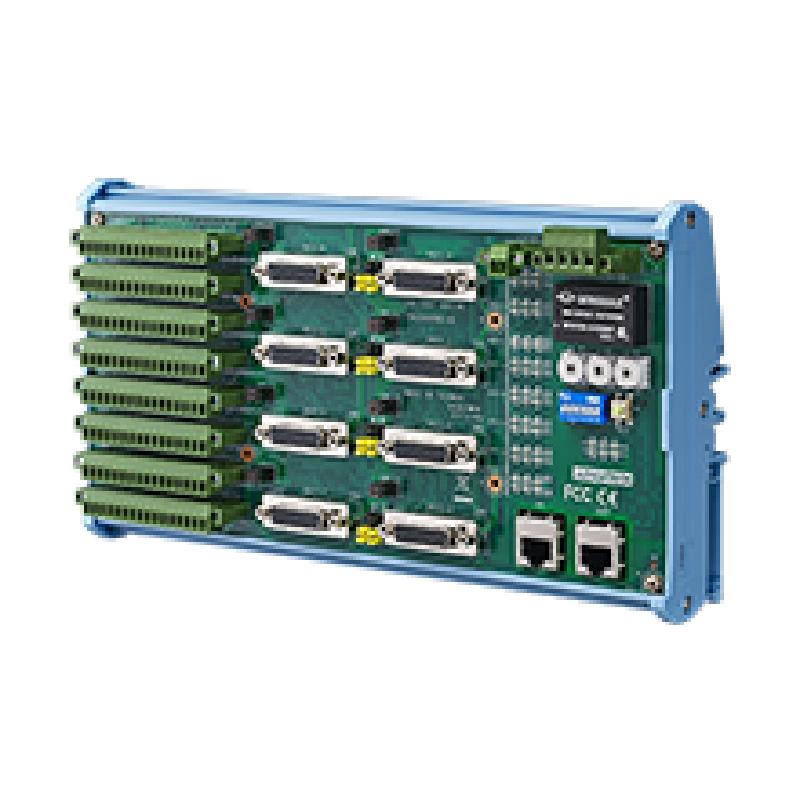

• AMAX-3285IO provides the ability to connect step motor drives and servo motor drives with CW/CCW and Pulse/Direction interfaces to EtherCAT networks controlled by Advantech PCI-1203. AMAX-3285IO has open frame designs for horizontal placement and an interface connector mounted on the board.
