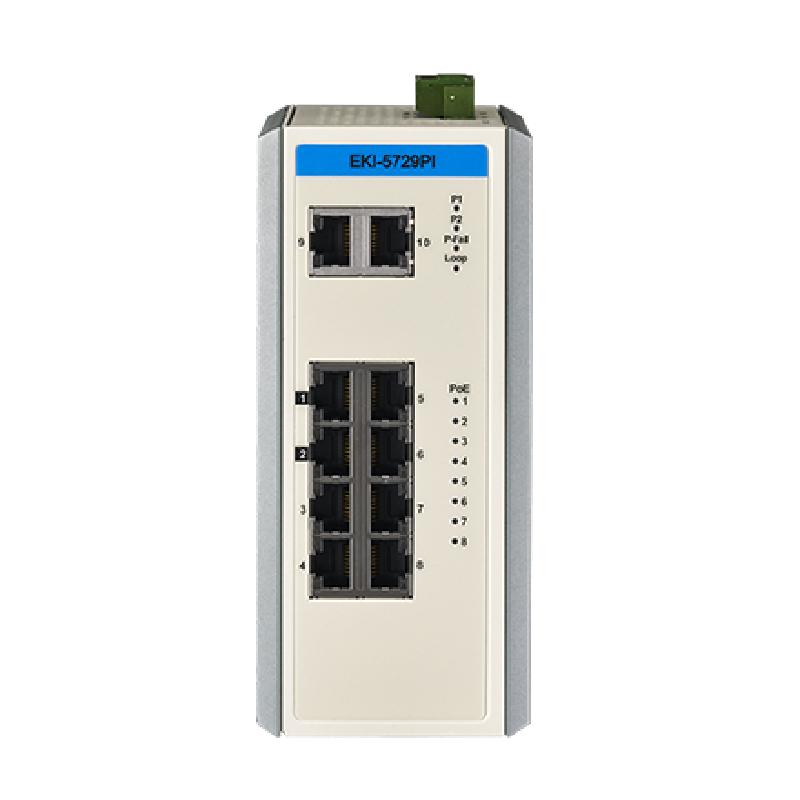

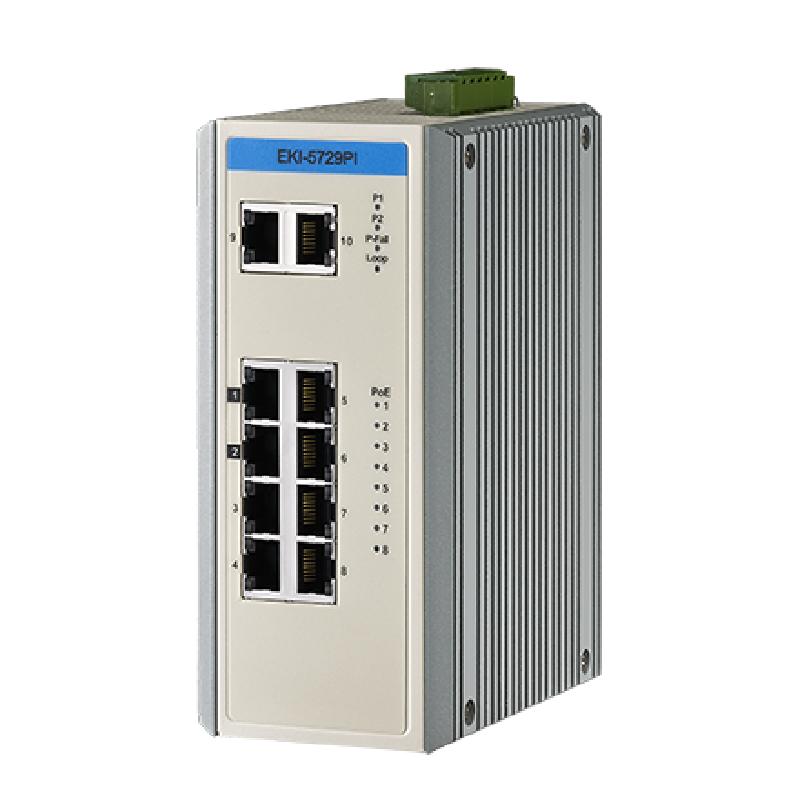

研華EKI-5729PI 8GE PoE and 2G Unmanaged Ethernet Switch, IEEE802.3af/at, E-Mark, 12V~24VDC, -40~75℃

Full Gigabit Ethernet ports and comply with IEEE
802.3af/at PoE standard
Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40 to 65°C operating temperature range (EKI-5729PI)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Provides 5/6 Fast Ethernet ports with 8 PoE ports
Supports redundant 12V~24V (9V ~ 36V) power input and P-Fail relay

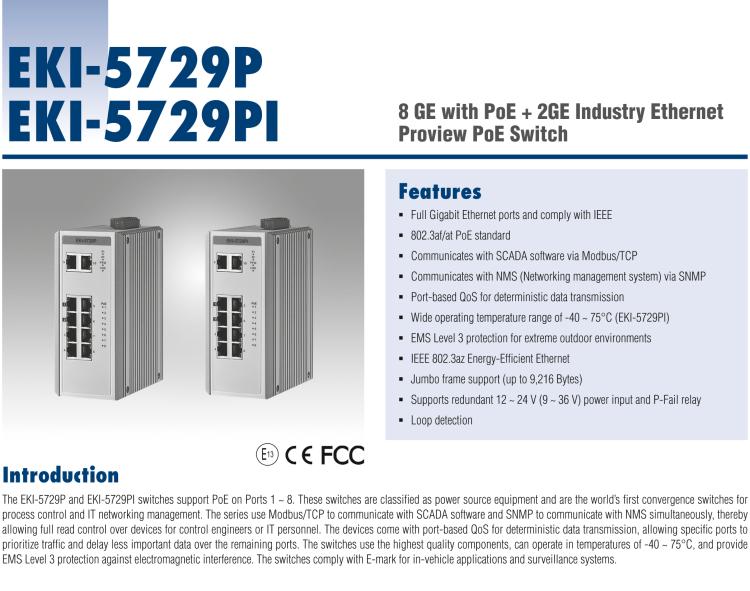

The EKI-5729P and EKI-5729PI switches support Power-over-Ethernet on ports 1 to 8. The switch is classified as power source equipment (PSE). Also it is the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. The switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance. The switches are compliant E-mark for in-vehicle application and surveillance system.
