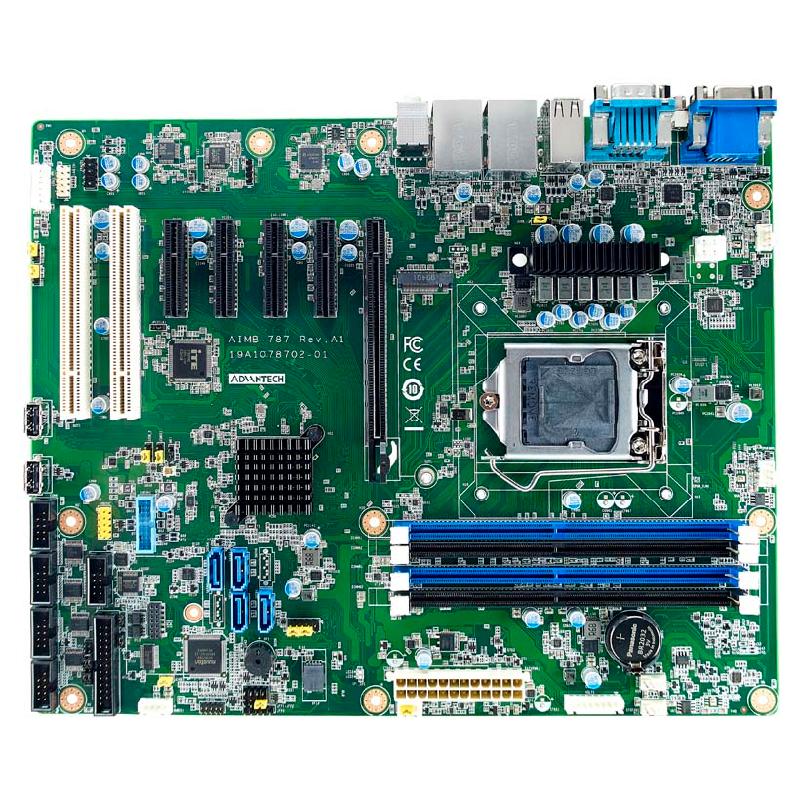

研華AIMB-787 LGA1200 10th Generation Intel? Core? i9/i7/i5/i3 & Pentium?/Celeron? ATX with DP/DVI/VGA, DDR4, USB 3.2, M.2

• Intel? 10th generation Core? i9/i7/i5/i3 & Pentium?/Celeron? processor with Q470E chipset
• Four DIMM sockets up to 128 GB DDR4 2933
• Triple display DP/DVI-D/VGA and dual GbE LAN
• M.2, SATA RAID 0, 1, 5, 10, USB 3.2
• Supports Intel vPro, AMT & TPM technologies
• Advantech iBMC 1.2 remote out-of-band power management solution on DeviceOn
• Note 1: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
• Note 2: Legacy platform is not supported.
• Note 3: Intel? Platform Trust Technology (Intel? PTT) ready for Windows 11.
• LGA1200 10th Generation Intel? Core? i9/i7/i5/i3 & Pentium?/Celeron? ATX with DP/DVI/VGA, DDR4, USB 3.2, M.2
