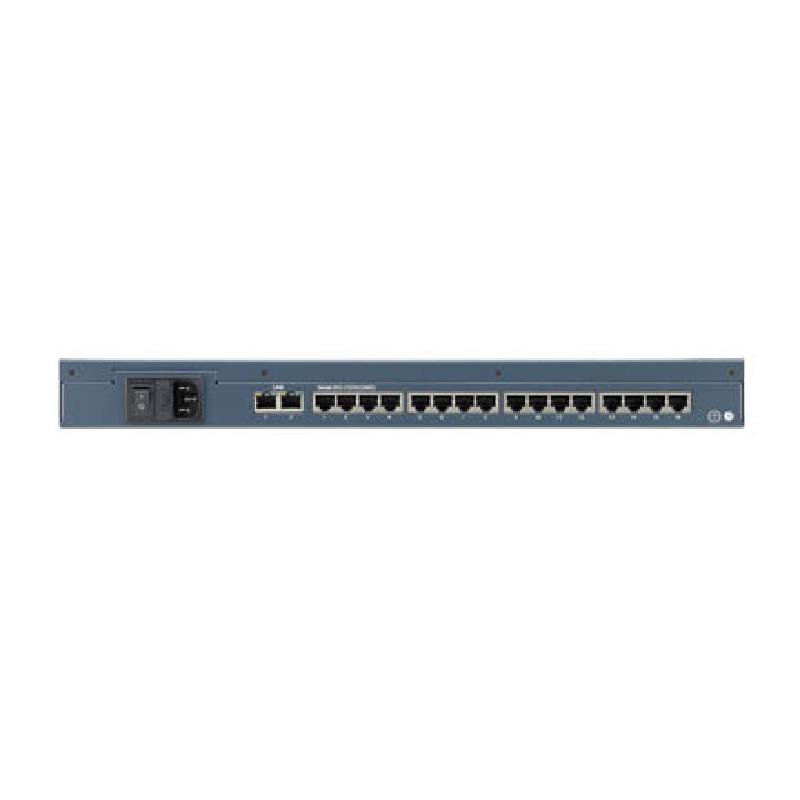

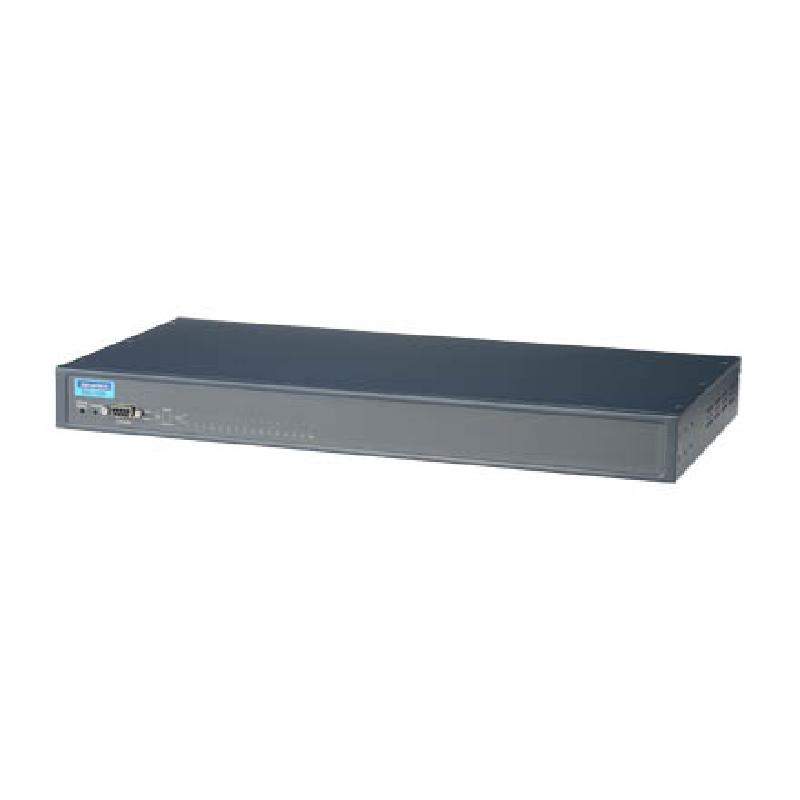

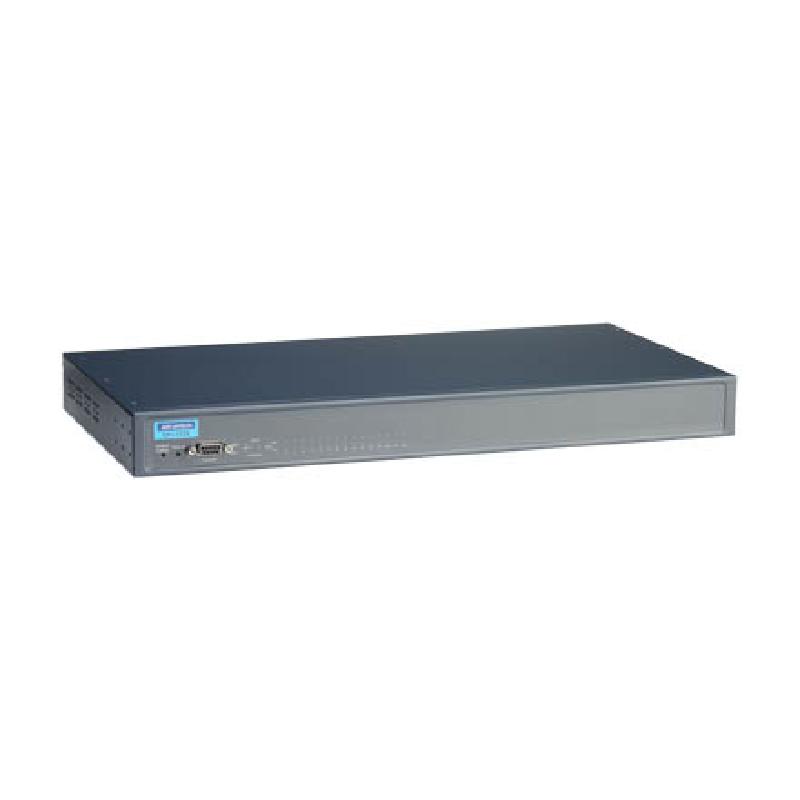

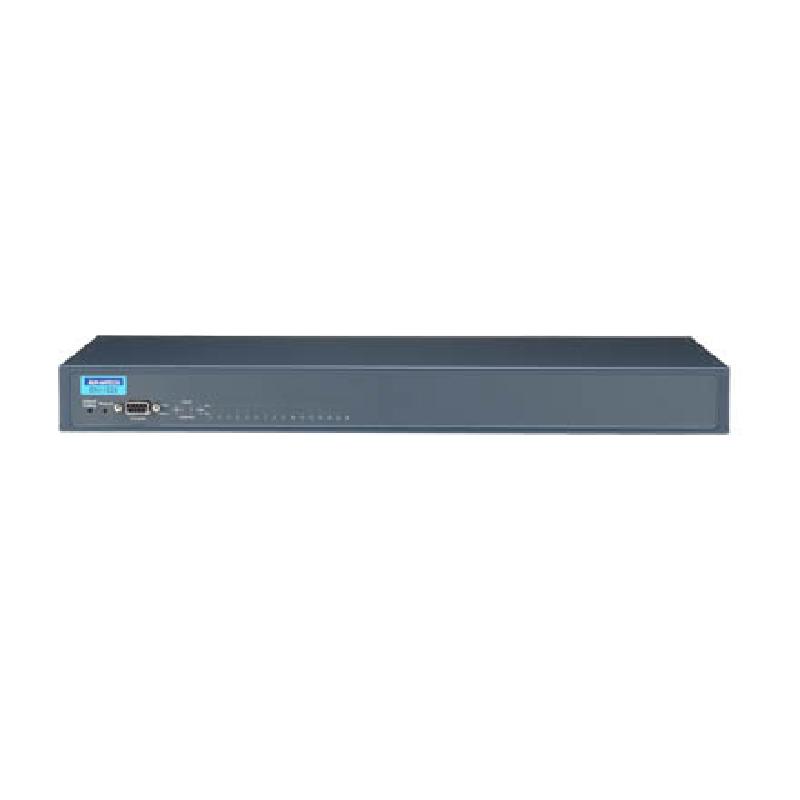

研華EKI-1526NL 16-Port Console Server

• 16-port RS-232 serial communication
• Cisco pin definition
• Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
• Supports up to 921.6 kbps, and any baud rate setting
• Provides COM port redirection (Virtual COM), TCP and UDP operation modes
• Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
• Built-in 15 KV ESD protection for all serial signals
• SNMP MIB-II for network management
• Built-in buzzer for easy location
• The EKI-1528NL-CS and EKI-1526NL-CS are industrial-grade network-based console servers for connecting up to 8 or 16 serial RS-232 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network.
